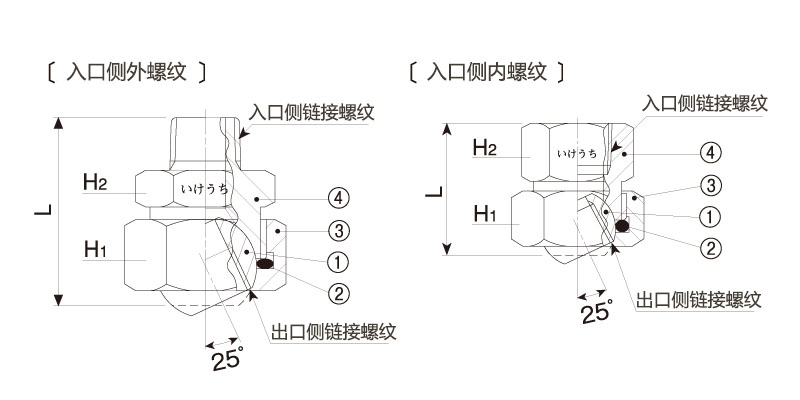

［尺寸图］金属制 左下图：入口侧外螺纹 右下图：入口侧内螺纹
①球部
②O形圈（NBR）
③帽
④连接器
|
型号
|
入口侧
螺纹尺寸
|
喷嘴连接侧
螺纹尺寸
|
外形尺寸（mm）
|
|
L
|
H1
|
H2
|
|
UT1/8M×1/8FS303
|
1/8M
|
1/8F
|
32.5
|
22
|
21
|
|
UT1/8M×1/8FB
|
1/8M
|
1/8F
|
|
UT1/4M×1/8FS303
|
1/4M
|
1/8F
|
36.0
|
|
UT1/4M×1/8FB
|
1/4M
|
1/8F
|
|
UT1/4M×1/4FS303
|
1/4M
|
1/4F
|
39.5
|
29
|
24
|
|
UT1/4M×1/4FB
|
1/4M
|
1/4F
|
|
UT3/8M×1/4FS303
|
3/8M
|
1/4F
|
40.0
|
|
UT3/8M×1/4FB
|
3/8M
|
1/4F
|
|
UT3/8M×3/8FS303
|
3/8M
|
3/8F
|
47.5
|
35
|
30
|
|
UT3/8M×3/8FB
|
3/8M
|
3/8F
|
|
UT1/2M×1/2FS303
|
1/2M
|
1/2F
|
54.5
|
41
|
41
|
|
UT1/2M×1/2FB
|
1/2M
|
1/2F
|
|
UT3/4M×3/4FS303
|
3/4M
|
3/4F
|
61.5
|
50
|
46
|
|
UT3/4M×3/4FB
|
3/4M
|
3/4F
|
|
UT1/8F×1/8FS303
|
1/8F
|
1/8F
|
28.5
|
22
|
21
|
|
UT1/8F×1/8FB
|
1/8F
|
1/8F
|
|
UT1/4F×1/8FS303
|
1/4F
|
1/8F
|
|
UT1/4F×1/8FB
|
1/4F
|
1/8F
|
|
UT1/4F×1/4FS303
|
1/4F
|
1/4F
|
33.5
|
29
|
24
|
|
UT1/4F×1/4FB
|
1/4F
|
1/4F
|
|
UT3/8F×1/4FS303
|
3/8F
|
1/4F
|
|
UT3/8F×1/4FB
|
3/8F
|
1/4F
|
|
UT3/8F×3/8FS303
|
3/8F
|
3/8F
|
44.5
|
35
|
30
|
|
UT3/8F×3/8FB
|
3/8F
|
3/8F
|
|
UT1/2F×1/2FS303
|
1/2F
|
1/2F
|
48.5
|
41
|
41
|
|
UT1/2F×1/2FB
|
1/2F
|
1/2F
|
|
UT3/4F×3/4FS303
|
3/4F
|
3/4F
|
55.5
|
50
|
46
|
|
UT3/4F×3/4FB
|
3/4F
|
3/4F
|

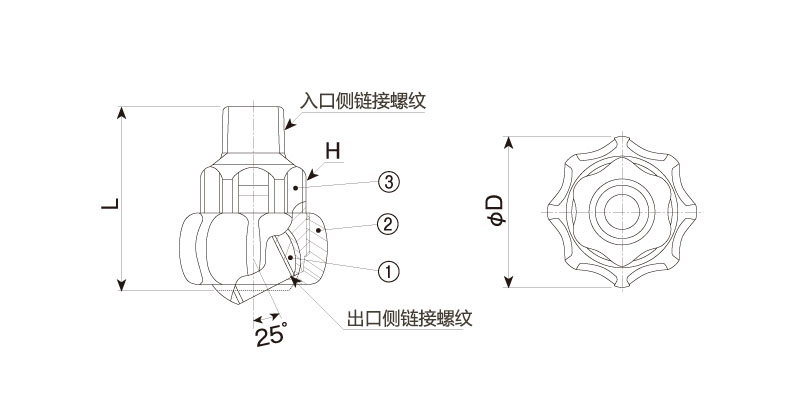

［尺寸图］树脂制
①球部
②帽
③连接器
|
型号
|
入口侧
螺纹尺寸
|
喷嘴连接侧
螺纹尺寸
|
外形尺寸（mm）
|
|
L
|
H
|
φD
|
|
UT1/8M×1/8FFRPP-IN
|
1/8M
|
1/8F
|
38.0
|
21
|
32
|
|
UT1/4M×1/8FFRPP-IN
|
1/4M
|
1/8F
|
40.0
|
|
UT1/4M×1/4FFRPP-IN
|
1/4M
|
1/4F
|
|
UT3/8M×1/8FFRPP-IN
|
3/8M
|
1/8F
|
41.0
|
|
UT3/8M×1/4FFRPP-IN
|
3/8M
|
1/4F
|
